Hikvision Access Control

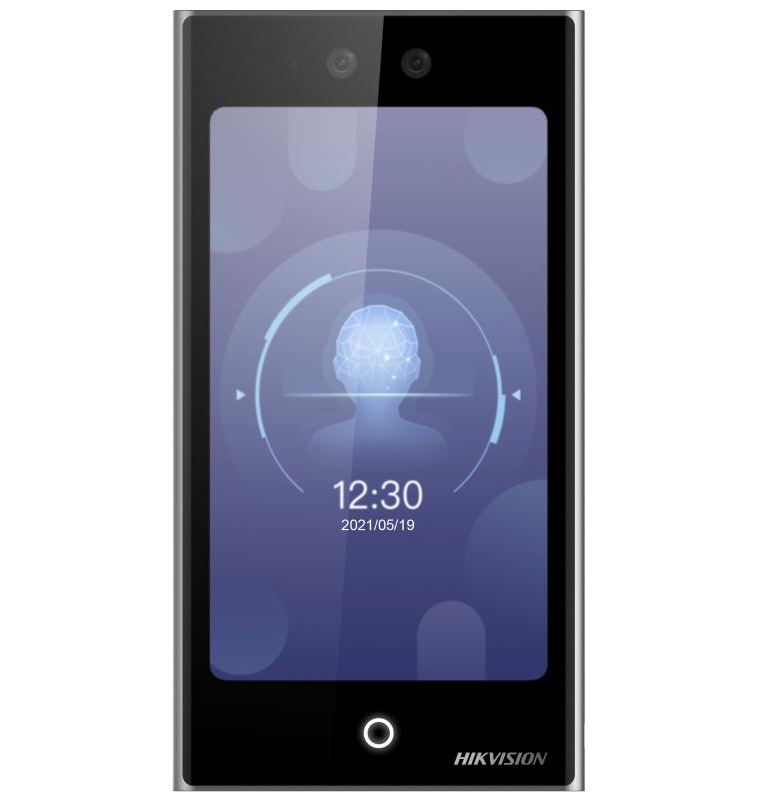

DS-K1T673DWX
Pro Face Access Terminal
7-inch LCD touch screen,2 Mega pixel wide-angle lens
Recognition distance: 0.3 to 3 m
Face recognition duration ＜ 0.2 s/User
Face recognition accuracy rate ≥ 99%
Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
Face mask detection
10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
Supports single person and multiple people (Up to 5 people) recognition

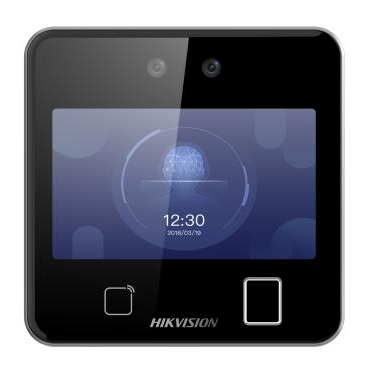

DS-K1T642
Pro Series Face Recognition Terminals
Face recognition distance: 0.3 m to 3 m
6,000 face capacity, 10,000 card capacity, 5,000 fingerprint capacity for device support fingerprint related functions, and 150,000 event capacity
Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
Two-way audio with indoor station and master station
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
Remotely opens door and starts live view via Hik-Connect
Configuration via the web client
Supports ISAPI and EHome 5.0 protocol
Face Recognition Terminals
DS-K1T673DWX

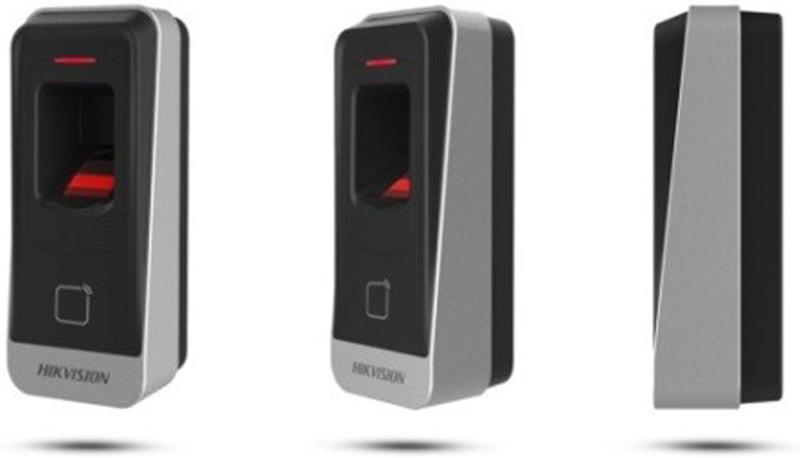

Fingerprint Reader
A group of messy code encrypted data for the security of fingerprint storage
Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
Supports M1 card reading
Card induction distance is 30 mm to 100 mm
Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
Max. 5000 fingerprints storage
Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
Communication circuit is designed with optical coupling isolation and noise suppression function
Built-in buzzer for status indication
Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
Tamper-proof function
Hikvision Outdoor Cameras

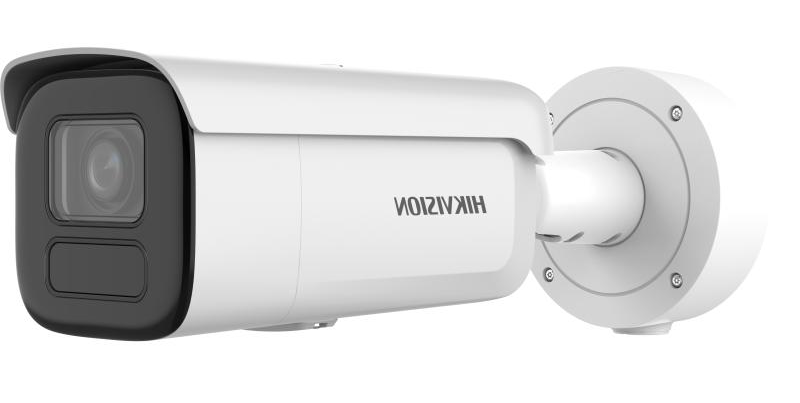

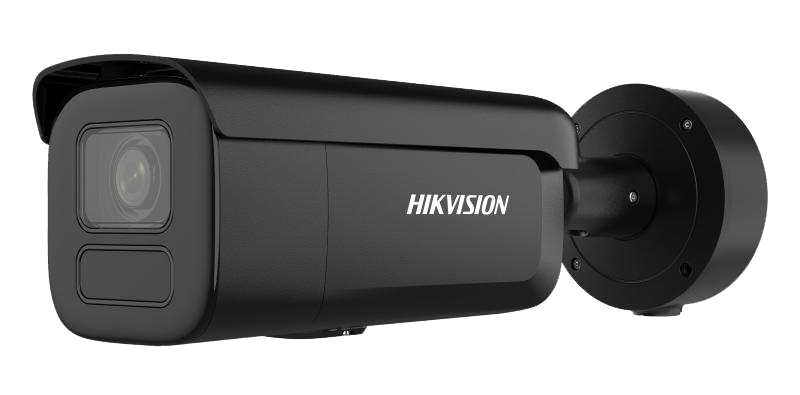

DS-2CD2646G2H-IZS
4 MP Powered by Darkfighter Motorized Varifocal Bullet Network Camera
High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
DS-2CD2646G2H-IZS
4 MP Powered by Darkfighter Motorized Varifocal Bullet Network Camera
High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
DS-2CD2646G2H S(L)(RB)
4 MP Powered by Darkfighter Motorized Varifocal Bullet Network Camera
High quality imaging with 4 MP resolution
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67) and vandal resistant (IK10)
Built-in arrayed dual-microphone for real-time high quality audio security
DS-2CD2646G2H S(L)(RB)
4 MP Powered by Darkfighter Motorized Varifocal Bullet Network Camera
High quality imaging with 4 MP resolution
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67) and vandal resistant (IK10)
Built-in arrayed dual-microphone for real-time high quality audio security
Hikvision PTZ Pro Cameras

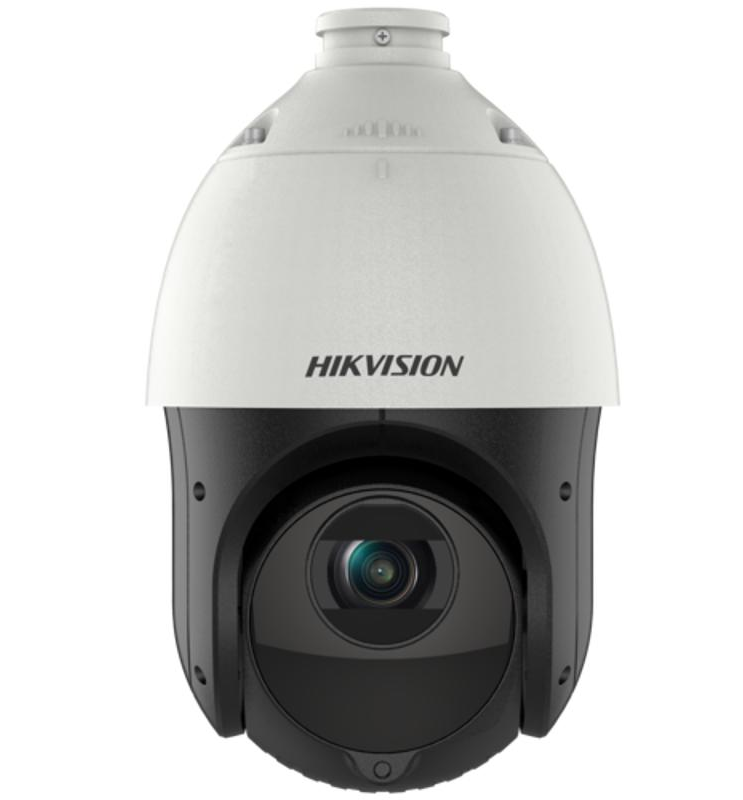

DS-2DE4415IW-DE(T5)
4 MP 15X Powered by DarkFighter IR Acusense Network Speed Dome
Focuses on human and vehicle targets classification based on deep learning
Support face capture. Up to 5 faces captured at the same time
1/2.8" Progressive Scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
15× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 100 m IR distance
Support H.265+/H.265 video compression
Indoor Cameras

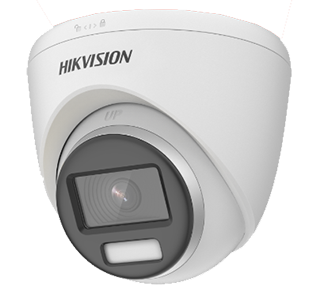

DS-2CE12KF3T
Image Sensor1/1.8" 3K CMOS
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Light AlarmSolid Light Alarm (White Light)
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
Wide Dynamic Range (WDR)≥130 dB
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementWDR;BLC;HLC;HLS;Global
Privacy Mask4 programmable privacy masks
DS-2CE12KF3T
Image Sensor1/1.8" 3K CMOS
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Light AlarmSolid Light Alarm (White Light)
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
Wide Dynamic Range (WDR)≥130 dB
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementWDR;BLC;HLC;HLS;Global
Privacy Mask4 programmable privacy masks
DS-2CE12KF3T
Image Sensor1/1.8" 3K CMOS
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Light AlarmSolid Light Alarm (White Light)
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
Wide Dynamic Range (WDR)≥130 dB
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementWDR;BLC;HLC;HLS;Global
Privacy Mask4 programmable privacy masks
DS-2CE12KF3T
Image Sensor1/1.8" 3K CMOS
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Light AlarmSolid Light Alarm (White Light)
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
Wide Dynamic Range (WDR)≥130 dB
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementWDR;BLC;HLC;HLS;Global
Privacy Mask4 programmable privacy masks
Hikvision Network Video Recorders

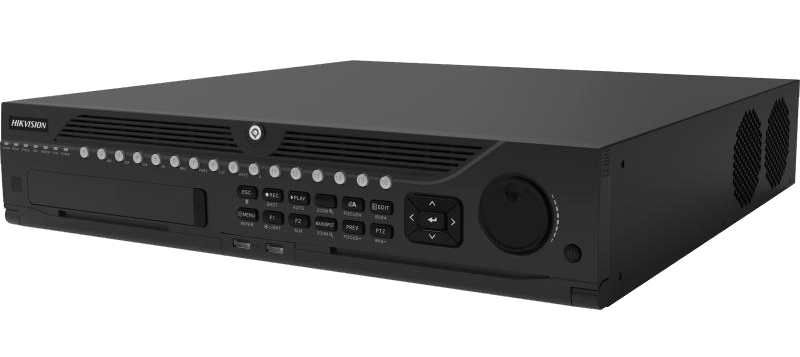

8-ch 2U 4K NVR
Up to 8 channel IP cameras can be connected
Up to 12 MP high-definition live view, storage and playback
Up to 256 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 2 VGA (different source) interfaces
8 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
16-ch 2U 4K NVR
Up to 16 channel IP cameras can be connected
Up to 12 MP high-definition live view, storage and playback
Up to 256 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 2 VGA (different source) interfaces
8 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
24-ch 2U 4K NVR
Up to 24 channel IP cameras can be connected
Up to 12 MP high-definition live view, storage and playback
Up to 256 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 2 VGA (different source) interfaces
8 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

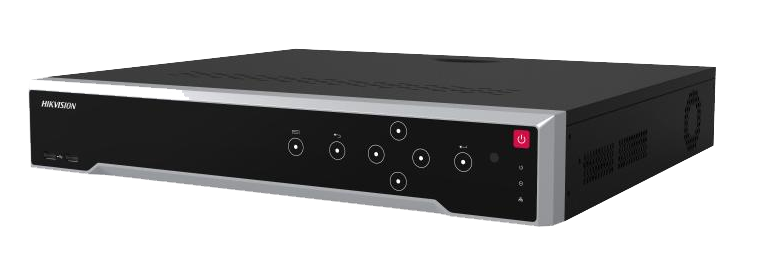

32-ch 1.5U 24 PoE 8K NVR
H.265+/H.265/H.264+/H.264 video formats
Up to 32-ch IP camera inputs
Up to 32-ch@1080p decoding capacity
Up to 320 Mbps incoming bandwidth
Up to 8-ch IP speakers can be connected
